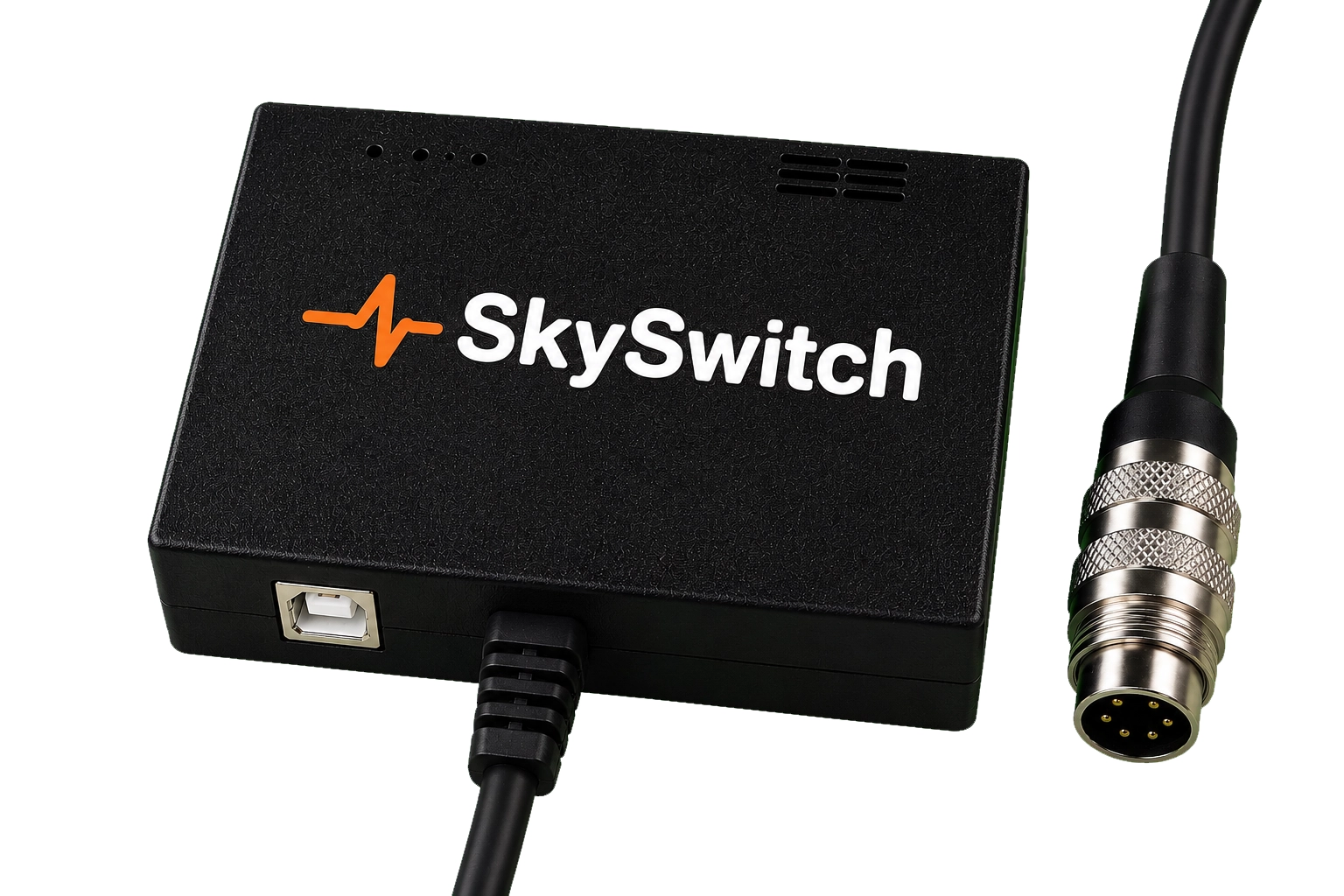

SkySwitch PRO
Remote control for 10Micron mounts
SkySwitch PRO lets you remotely switch your 10Micron mount on and off from anywhere. It also extends your setup with observatory-grade environmental and GPS data, monitoring weather conditions for atmospheric refraction calculations and synchronizing the mount with accurate UTC time and geolocation.
Choose your version by connector type
Both versions provide the same core functionality.

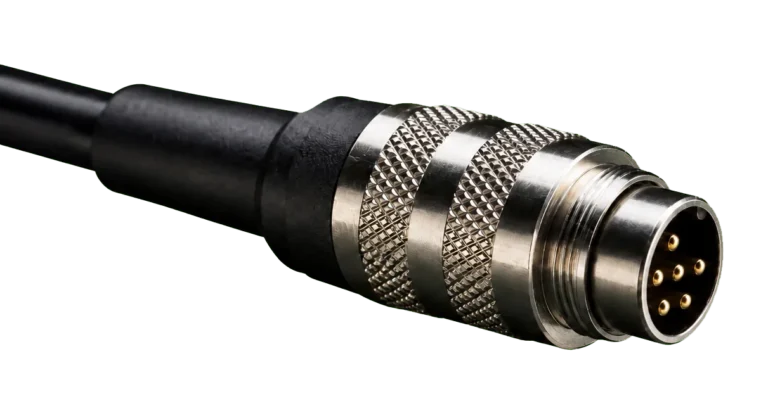

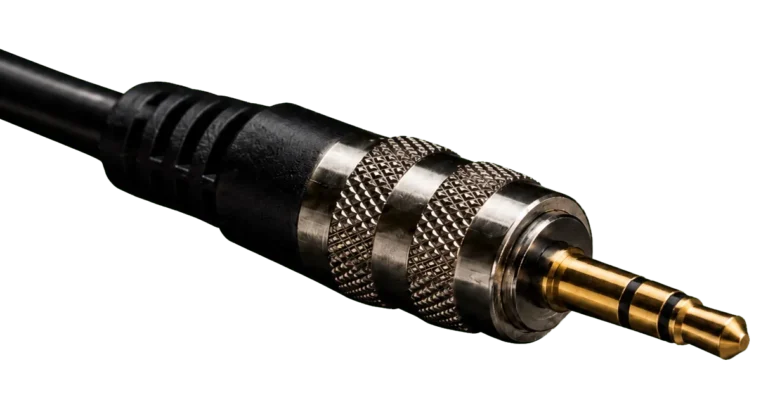

Select V3 for the 6-pin AUX connector or V2 for the 3.5mm Jack connector.
with V3 controller
with V2 controller
Same powerful features. Different connector.
Choose the version that matches your controller and enjoy full SkySwitch PRO functionality.
Remote control solution for 10Micron mounts
SkySwitch PRO was created primarily to enable remote switching of 10Micron mounts equipped with the V3 controller. For remote operation, 10Micron provides an AUX interface intended for this type of functionality, making it possible to implement dedicated third-party control solutions. SkySwitch PRO is designed specifically to answer that need. The PRO version goes beyond remote power switching by integrating additional functions that are highly relevant in real observatory use. It combines environmental sensing and high-sensitivity GPS for ASCOM-based synchronization in one compact device, reducing the need for separate external modules.
Remote switching for 10Micron V3 Controller
With the V3 controller, a 10Micron mount can be switched on or off either manually by pressing and holding the physical power button for two seconds, or remotely by sending a control pulse through the AUX interface. SkySwitch PRO is designed specifically to make use of this remote-control capability in a reliable and practical way.
In addition to generating the switching pulse, SkySwitch PRO monitors the operating state of the mount through the same AUX connection. This allows the user to see in real time whether the mount is currently ON or OFF, providing clear remote awareness of the system status instead of blind pulse triggering. In practice, SkySwitch PRO is not only a remote switching device, but also a live status interface for remote or semi-remote mount operation.
Environmental data for atmospheric refraction
SkySwitch PRO is equipped with a high-sensitivity environmental sensor that measures temperature, pressure, and humidity, and calculates dew point based on the acquired readings. These environmental parameters are used as a technical input for the mount. If enabled by the user, SkySwitch PRO writes the data in Boltwood format to a file that is continuously read by the mount and used for internal atmospheric refraction correction calculations.
In addition to this primary function, SkySwitch PRO also makes the same environmental data available to the user in practical ways. The readings are displayed live in the software interface, and the software includes configurable offsets that allow the user to correct sensor values if calibration adjustments are needed. The data can also be saved to a CSV file for the user’s own analysis, record keeping, or observatory monitoring workflow.
GPS-based mount synchronization
SkySwitch PRO features a built-in high-sensitivity GPS receiver that provides accurate location, altitude, and UTC time data. This information is used by the companion software to synchronize the 10Micron V3 mount through the ASCOM interface, without the need for a separate external GPS module connected directly to the mount. The result is a cleaner remote observatory setup, fewer physical connections, and integrated positioning and time-support functionality in one compact device.
All-in-one advantage
SkySwitch PRO combines remote mount switching, environmental sensing, and high-sensitivity GPS for ASCOM-based synchronization in one compact enclosure designed specifically for 10Micron V3 operation. Instead of buying, powering, and wiring multiple separate devices, the user gets one integrated solution that reduces cost, simplifies installation, minimizes cable clutter, and makes the complete observatory setup cleaner and easier to manage.
The SkySwitch PRO software interface provides clear access to mount status, sensor readings, GPS data, and device configuration in one compact control panel.
STATUS – Provides the main live overview of the SkySwitch PRO system. It shows the current mount power state, the primary PULSE control for remote ON/OFF switching through the AUX interface, and the connection status of the USB device, weather sensor, GPS module, and mount synchronization. The page also presents environmental readings, GPS data, satellite count, and GPS quality. An advanced Auto-sync logic uses the quality of the incoming GPS data to determine when synchronization with the mount should be performed, helping avoid updates based on weak or incomplete GPS fixes. The user can also define which parameters are transferred to the mount, such as location, altitude, UTC time, and environmental data. Quick settings provide immediate access to Auto-sync and Dark Mode, while the bottom status bar summarizes key operating states such as COM port, GPS battery, dark condition, offsets, refraction, and weather logging.

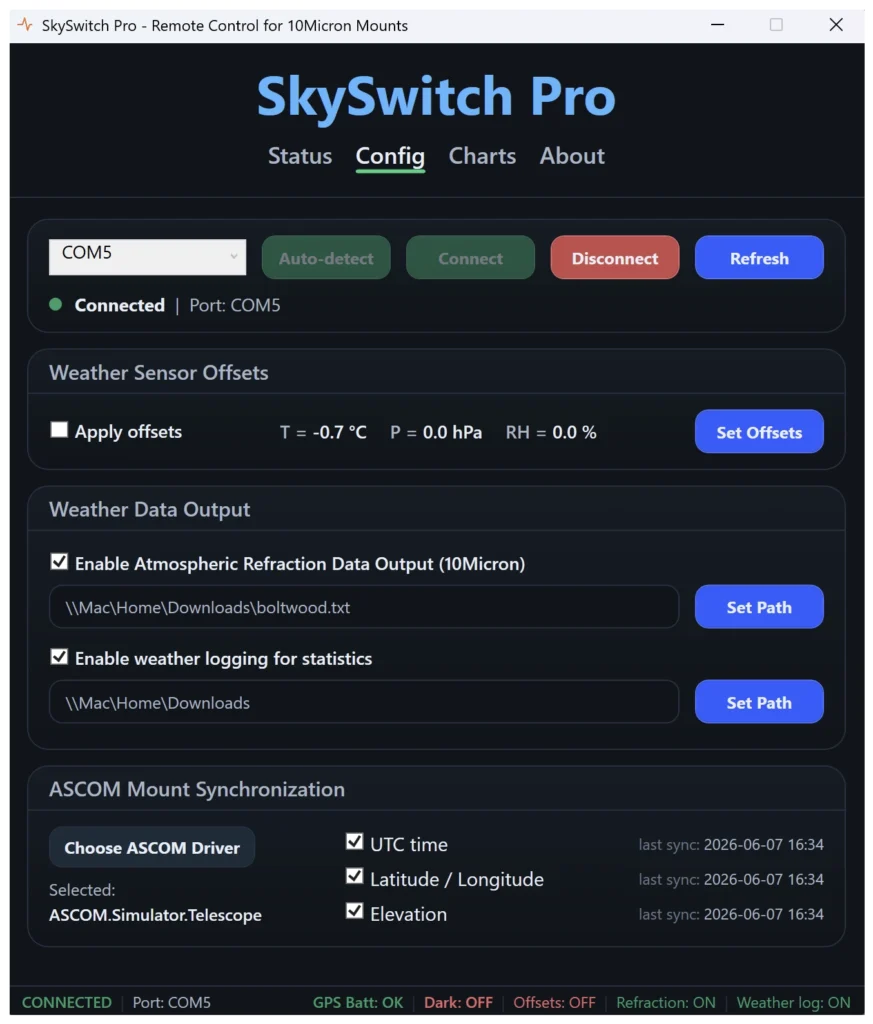

CONFIG – Provides access to the main configuration functions of SkySwitch PRO. The user can select the communication port manually or use Auto-detect to automatically identify the correct SkySwitch COM port without searching blindly through available devices. The page also allows weather-data offsets to be applied when a more reliable reference source is available, and enables configuration of atmospheric refraction data output and weather logging. The ASCOM Mount Synchronization section lets the user choose the ASCOM telescope driver, define which parameters are transferred to the mount, including UTC time, latitude/longitude, and elevation, and review the timestamp of the last successful synchronization for each parameter.

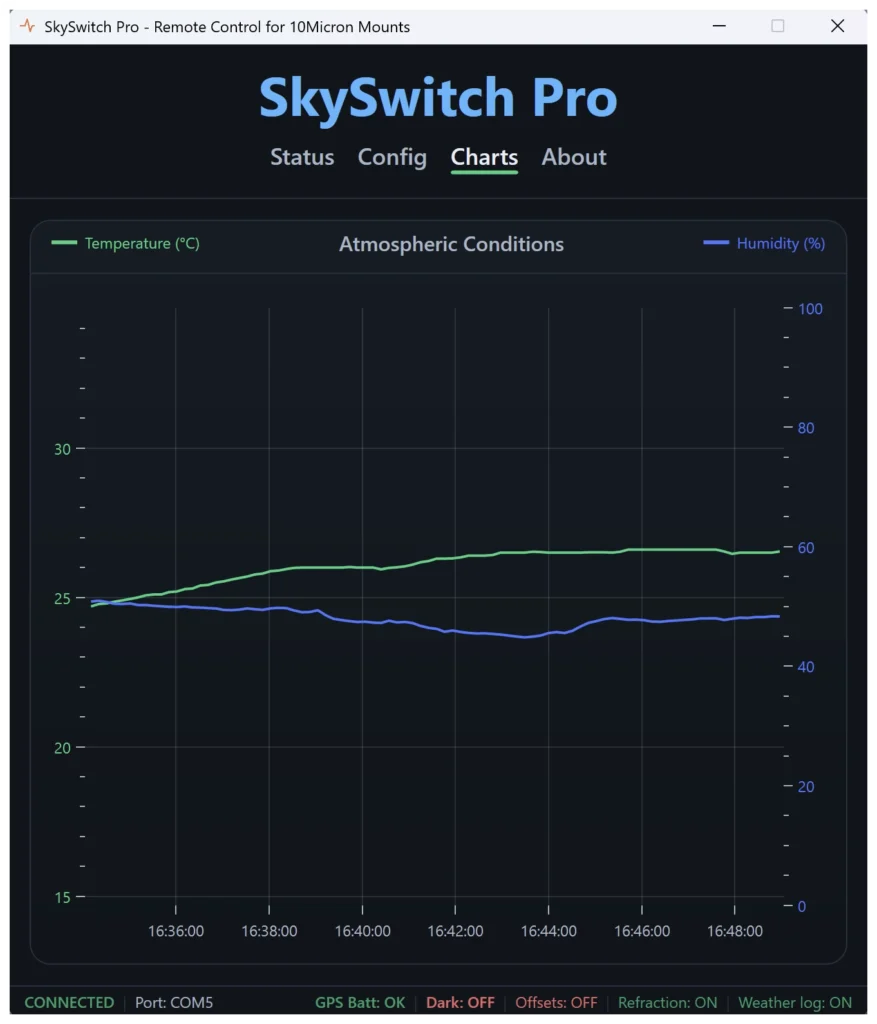

ENVIRONMENTAL TRENDS – Displays a live chart of temperature and humidity trends throughout the current session. The graph is updated every 60 seconds and provides a real-time visual preview of changing atmospheric conditions. It is intended for live monitoring only and does not use data loaded from saved log files.

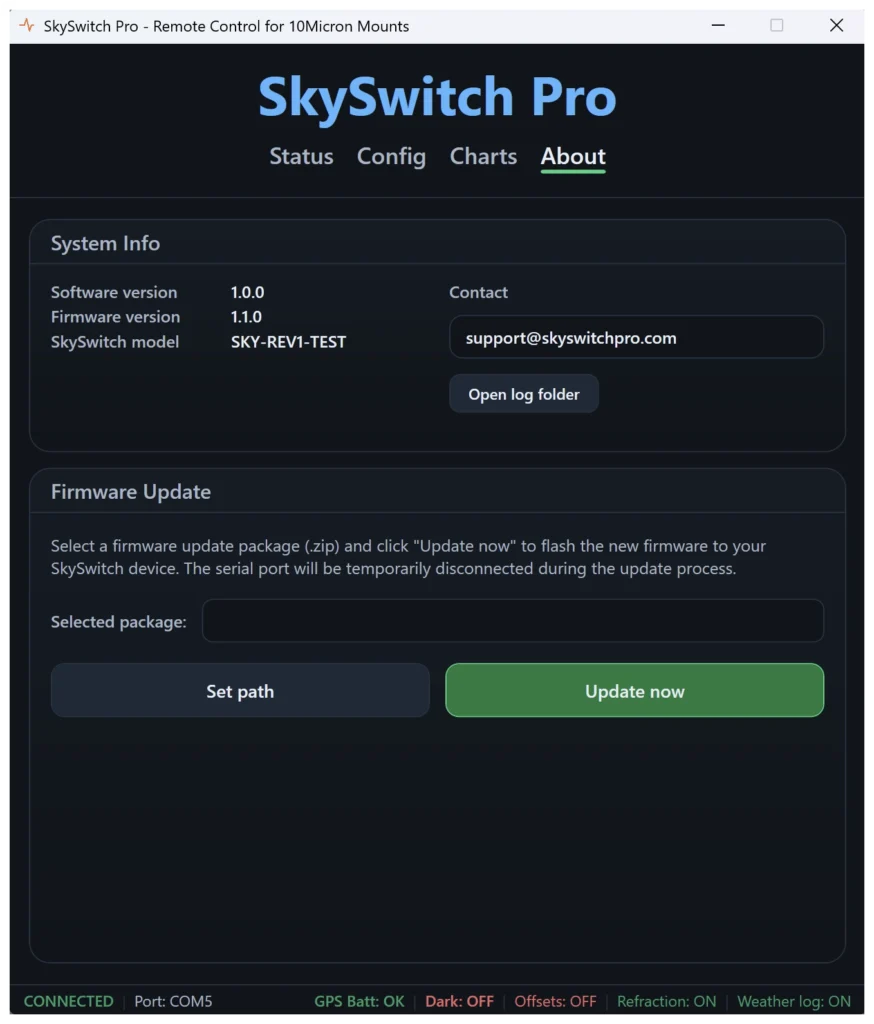

ABOUT – Displays general device and software information, including software version, firmware version, and SkySwitch model details. It also provides contact details and access to the firmware update panel. This tab serves as a quick reference point for product identification and basic maintenance tasks.
Technical specification
Key hardware and system parameters of SkySwitch PRO.
Mechanical
Electrical
Sensors & Sync
SkySwitch PRO
Remote control solutions for 10Micron mounts
Built for remote observatory control, environmental data, and V3 system integration
