SkySwitch PRO for 10Micron V2 Mounts

Description

SkySwitch PRO for 10Micron V2 Mounts

SkySwitch PRO V2 is a dedicated remote power-control and monitoring module for 10Micron mounts equipped with the V2 controller and the 3.5 mm remote input.

It allows you to safely switch your mount ON or OFF remotely while providing environmental and GPS data to your observatory system. The V2 version uses an isolated dry-contact switching output specifically designed for the remote input of legacy 10Micron V2 controllers.

Main features

• Remote ON/OFF control via the 3.5 mm remote input
• Isolated dry-contact switching output
• Built-in GPS receiver for accurate UTC time and geolocation
• Temperature, humidity and atmospheric pressure monitoring
• ASCOM-based synchronization of UTC time, latitude, longitude and elevation
• USB connection to the Windows control computer
• Designed for unattended remote observatory operation

Controller Version

This version is designed for 10Micron mounts equipped with the V2 controller, identified by the 3.5 mm remote input.

For mounts equipped with the newer V3 controller featuring the 6-pin AUX connector, please choose SkySwitch PRO V3 – AUX.

Package includes

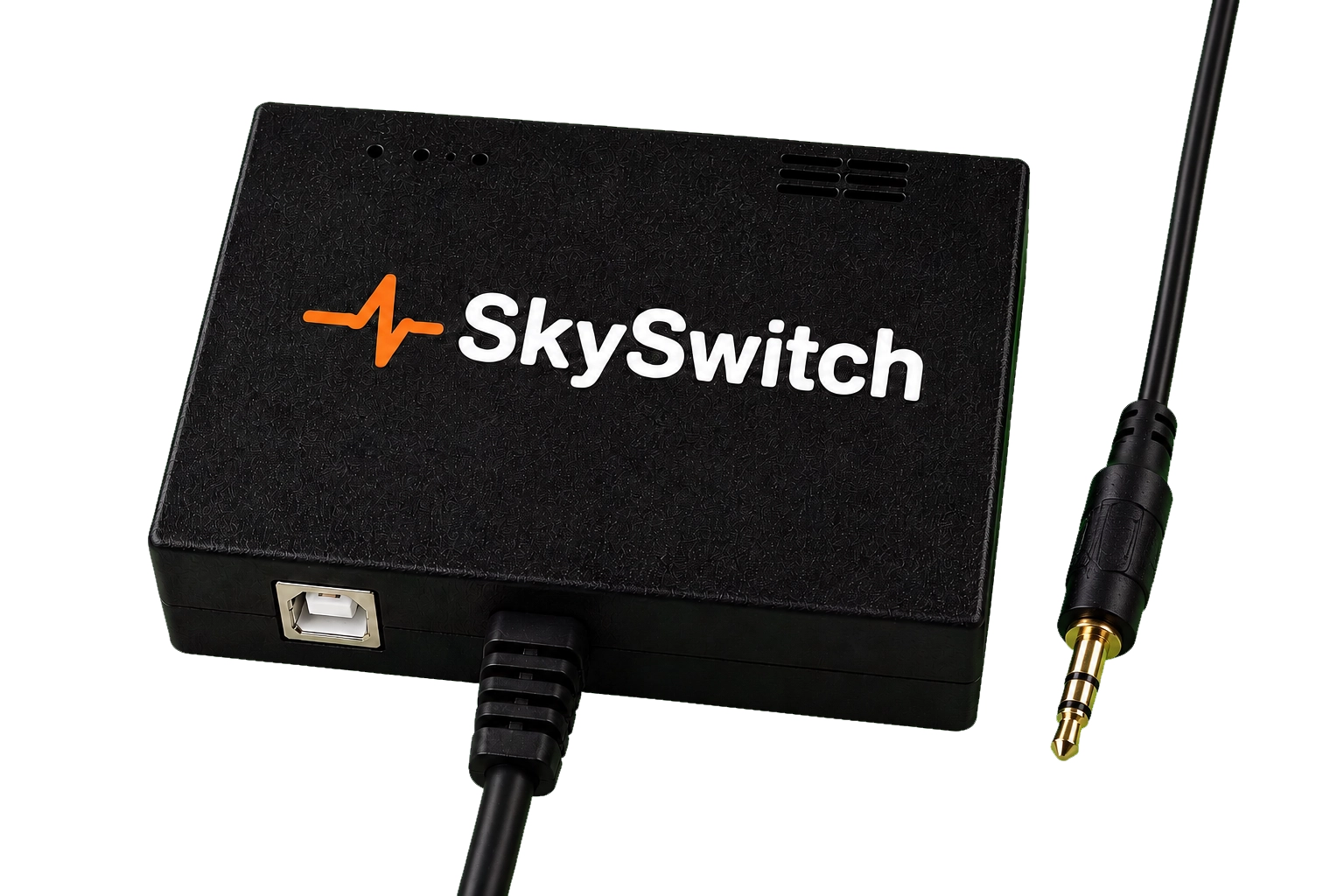

• SkySwitch PRO V2 unit
• Dedicated 3.5 mm jack cable for 10Micron V2 controller
• USB cable not included, as the required cable length and routing depend on the user’s individual observatory setup and installation preferences

Note: SkySwitch PRO does not replace the original 10Micron controller. It provides
remote switching, environmental monitoring and synchronization functions for advanced observatory automation.
